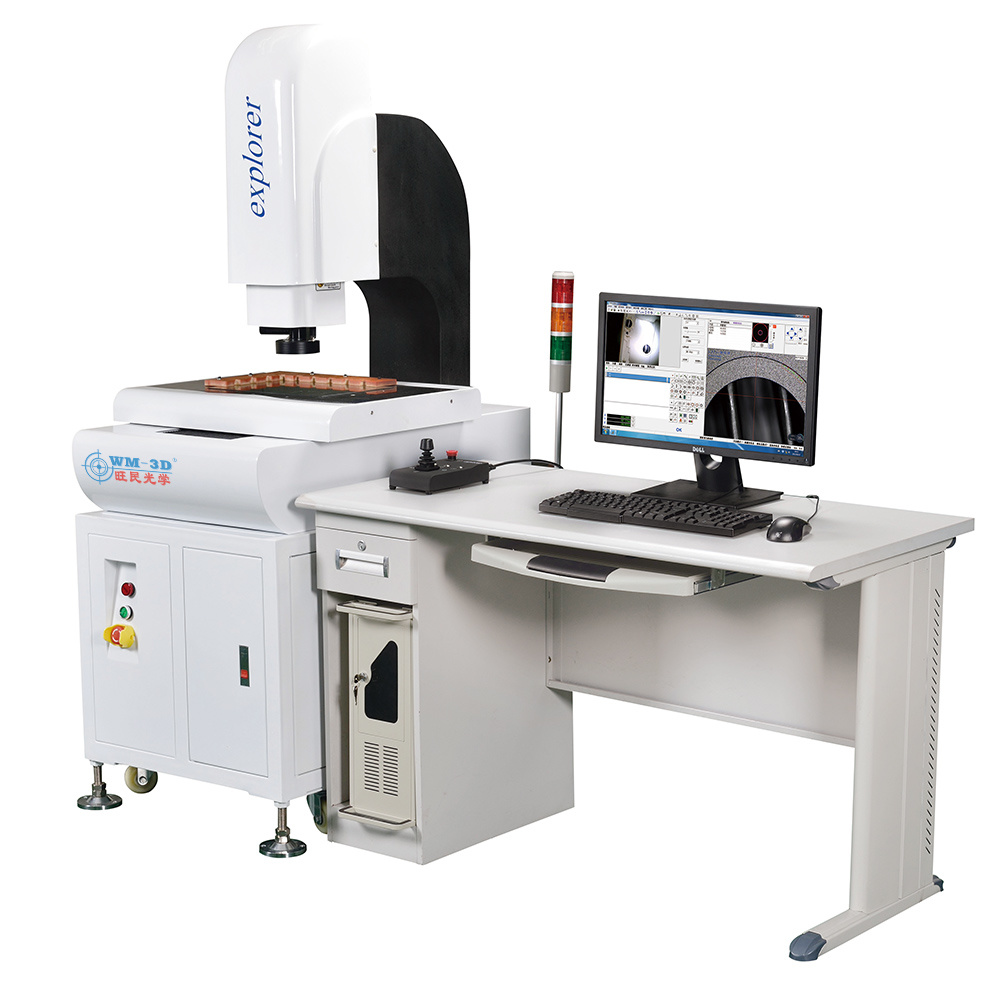

Features
1.High-precision fully automatic measurement,CNC four-axis control.
2.High-precision and high-strength machine:00-class marble
base/column/workbench with high precision and good stability.
3.XYZthree-axis imported precision linear guide / imported grinding
grade ball screw drive system, long life and good stability.
4.High precision metal patch ruler 0.2um.
5.The Wm0750 automatic zoom optical lens enables fully automatic
measurement without the need for zoom correction.
6.HD SONY ccD camera with high quality measurement screen.
7.Autofocus measurement, optical altimetry flatness, UK RENISHAW
contact probe.
8.Program-controlled five-ring eight-zone surface light source LED
contour light source, coaxial light source.Different colors are
added to different products.
9.The navigation cCD camera indicates the measurement
position,which is quick to locate and convenient for measurement.
10.Combine the 3D measurement software developed by the imported
software function to improve the boundary resolution.
11.lt is equipped with a joystick for easy operation at any
position.
Specifications
1. It can measure point, line, circle, arc and oval, rectangular
and improve the accuracy with the multi-point positioning function.
2. It has many features, such as combination of measurements,
center structure and the intersection of structure, the midpoint of
construction, line structure, a round structure and structural
point of view.
3. It is coupled with the company's self-developed CNC measurement
software to achieve rapid detection of large quantities of work
pieces at the same time with SPC data analysis capabilities in
order to achieve a one-time complete the whole measurement.
4. Coordinate translation and coordinates straighten out is to make
measurement more convenient and efficient and improve measurement
efficiency.
5. Macros can measure the same parts faster and more convenient
volume and improve the measurement efficiency.6. Measurement data directly input into AutoCAD and become a full
work circle; the data also can be entered in Excel and Word to
conduct statistical analysis.
7. Record user program, editing and execute command.
Our Services
12 months warranty. Buy with confidence!
1. Within 12 months from the date of assemble and acceptance, but not exceeding 15 months from the date if shipment.
2. During this period, we will take phone and internet teaching to
users with a combinative after-sale advisory service.
3. We provide life warranty services of machine for users with
cost.
01. If machine failure caused by our side, you can send back the
spare parts to us and the cost by our side.
02. But if needs our technician come to customer side for training,
technical service is free,except ticket and accommodation.
4. Extra warranty period: We will provide to user after-sale long-life advisory service.
5. Our company has spare parts which can be provided for the users
with cost.
6. We provided users with after-sale value added technical service by preferential price for life.
Certifications
1.our software through the national professional organization of
standard measurement certification.
2.our machines can give HSR agency of standard measurement
certification.
