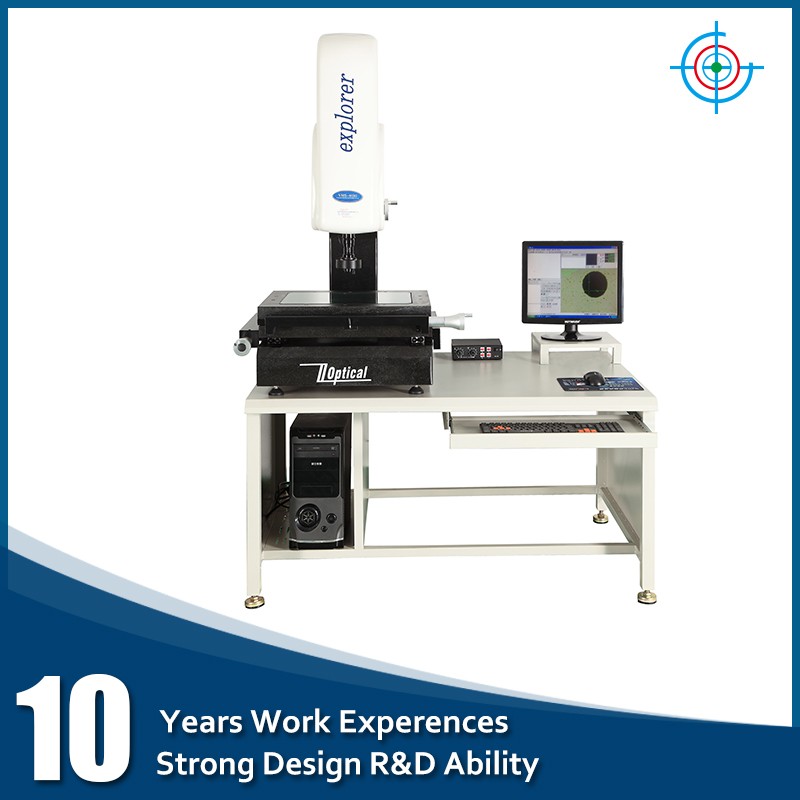

Product Description
Model | WM-2010F | WM-3020F | WM-4030F | WM-5040F |
Worktable | Metal table’s size(mm) | 350*220 | 450*350 | 550*450 | 700*600 |
Glass table’s size(mm) | 230*130 | 330*230 | 430*330 | 530*430 |
Three axis travel Travel(mm) | 200*100 | 300*200 | 400*300 | 500*400 |
Weight(kg) | 170 | 260 | 300 | 500 |
Dimension(L)*(W)*(H) | 500*700*1100 | 600*750*1100 | 700*900*1150 | 850*1050*1200 |
Measuring System (Standard Accessories) | Camera :SONY1 / 3" Color CCD Camera |
Lens magnification :0.7~4.5X WD:95mm |
Total magnification:30~230X Object view:7~1.1mm |
Double Cross Line Generator Data Resolution:0.001mm |
Z-axis lifting travel (mm):150mm (AUTO FOCUS) The indication error of X,Y-axis ≤(3+L/200)µm (L be regarded as measured length, units: mm) |
Lighting: Surface light and transmission light are used LED,
brightness adjustable Power:220/110V(AC),50HZ 30W |
1. Z-axis auto focus Video Measuring Machine can measure point, line, circle, arc and oval,
rectangular with the multipoint positioning function, combination
of measurements,
center structure and the intersection of structure, the midpoint of
construction, line structure,
a round structure.
2. It has various functions of data processing, display, input and output, Measurement data output Word,Excel and Auto CAD directly to
conduct statistical analysis, particularly, and the work piece
straightening function is very useful.
3. Digital measurement and data processing system are made up by the
two coordinate's studio,
the optical grating and the SDK -3000 data card.
4. It has RS232 interface with a computer and specialized measurement
software
which can also processes and output circular mapping.
5. Z axis motorized, it can realize auto focus. make the image to be the clearest situation.
Functions
1. Z-axis auto focus Video Measuring Machine can measure point,
line, circle, arc and oval,
rectangular with the multipoint positioning function, combination
of measurements,
center structure and the intersection of structure, the midpoint of
construction, line structure,
a round structure.
2. It has various functions of data processing, display, input and
output, Measurement data output Word,Excel and Auto CAD directly to
conduct statistical analysis, particularly, and the work piece
straightening function is very useful.
3. Digital measurement and data processing system are made up by
the two coordinate's studio,
the optical grating and the SDK -3000 data card.
4. It has RS232 interface with a computer and specialized
measurement software
which can also processes and output circular mapping.
5. Z axis motorized, it can realize auto focus. make the image to
be the clearest situation.
Our Services
12 months warranty. Buy with confidence!
1. Within 12 months from the date of assemble and acceptance, but not exceeding 15 months from the date if shipment.
2. During this period, we will take phone and internet teaching to users with a
combinative after-sale advisory service.
3. We provide life warranty services of machine for users with cost.
01. If machine failure caused by our side, you can send back the spare
parts to us and the cost by our side.
02. But if needs our technician come to customer side for training, technical service is free,
except ticket and accommodation.
4. Extra warranty period: We will provide to user after-sale long-life advisory service.
5. Our company has spare parts which can be provided for the users
with cost.
6. We provided users with after-sales value added technical service by preferential
price for life,
certificate
1.our software through the national professional organization of
standard measurement certification
2.our machines can give HSR agency of standard measurement
certification
