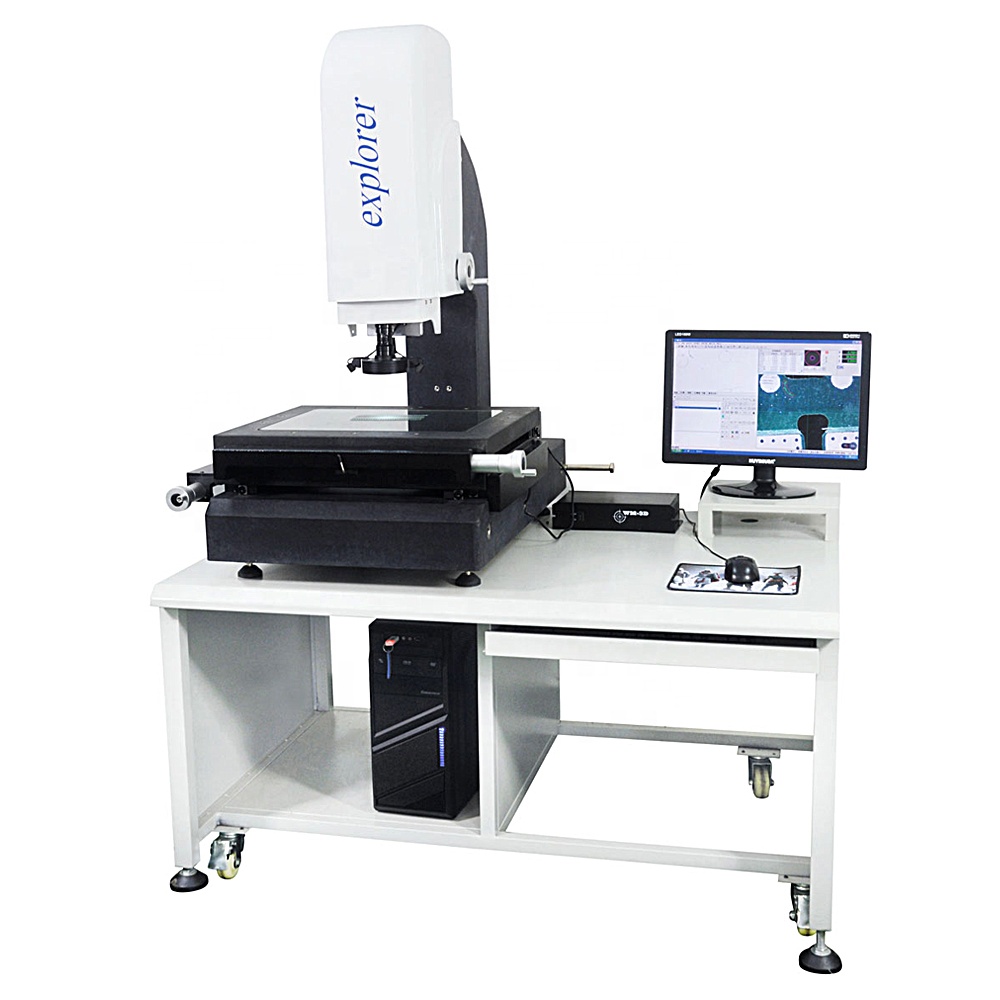

    OEM ODM 2D Coordinate Measuring Machine Instrument Multifunctional

    Ask Lasest Price
    Brand Name : WM-3D
    Model Number : VMS-3020F
    Certification : ISO9001
    Price : $4,500.00/sets 1-4 sets
    • Product Details
    • Company Profile

    OEM ODM 2D Coordinate Measuring Machine Instrument Multifunctional

    Low Price VMS-3020F measuring instrument

    Product Description

    OEM ODM 2D Coordinate Measuring Machine Instrument Multifunctional

    OEM ODM 2D Coordinate Measuring Machine Instrument Multifunctional

    Model

    WM-2010F

    WM-3020F

    WM-4030F

    WM-5040F

    Worktable

    Metal table’s size(mm)

    350*220

    450*350

    550*450

    700*600

    Glass table’s size(mm)

    230*130

    330*230

    430*330

    530*430

    Three axis travel Travel(mm)

    200*100

    300*200

    400*300

    500*400

    Weight(kg)

    170

    260

    300

    500

    Dimension(L)*(W)*(H)

    500*700*1100

    600*750*1100

    700*900*1150

    850*1050*1200

    Measuring System

    (Standard Accessories)

    Camera :SONY1 / 3" Color CCD Camera

    Lens magnification :0.7~4.5X WD:95mm

    Total magnification:30~230X Object view:7~1.1mm

    Double Cross Line Generator

    Data Resolution:0.001mm

    Z-axis lifting travel (mm):150mm (AUTO FOCUS)

    The indication error of X,Y-axis ≤(3+L/200)µm (L be regarded as measured length, units: mm)

    Lighting: Surface light and transmission light are used LED, brightness adjustable Power:220/110V(AC),50HZ 30W

    OEM ODM 2D Coordinate Measuring Machine Instrument Multifunctional

    OEM ODM 2D Coordinate Measuring Machine Instrument Multifunctional

    Our Services

    OEM ODM 2D Coordinate Measuring Machine Instrument Multifunctional

    12 months warranty. Buy with confidence!

    1. Within 12 months from the date of assemble and acceptance, but not exceeding 15 months from the date if shipment.

    2. During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service.

    3. We provide life warranty services of machine for users with cost.

    01. If machine failure caused by our side, you can send back the spare parts to us and the cost by our side.

    02. But if needs our technician come to customer side for training, technical service is free,except ticket and accommodation.

    4. Extra warranty period: We will provide to user after-sale long-life advisory service.

    5. Our company has spare parts which can be provided for the users with cost.

    6. We provided users with after-sales value added technical service by preferential price for life


    Company Information

    OEM ODM 2D Coordinate Measuring Machine Instrument Multifunctional

    OEM ODM 2D Coordinate Measuring Machine Instrument Multifunctional

    certificate

    OEM ODM 2D Coordinate Measuring Machine Instrument Multifunctional

    1.our software through the national professional organization of standard measurement certification
    2.our machines can give HSR agency of standard measurement certification
    Packaging & Shipping

    OEM ODM 2D Coordinate Measuring Machine Instrument Multifunctional

    FAQ

    Q: What kind of equipment do you mainly produce? A:

    Hello! Our main production equipment are: automatic image measuring instrument, manual image measuring instrument, large gantry image measuring instrument, one key measuring instrument.

    Automatic vision screening equipment,

    non-standard vision detection equipment,etc.

    Q: Do you accept custom service? Can I print my logo on the machine? A:

    Yes, all of our products can be customized, if you have a logo requirement, we can also customize for you.

    Q:Why do you choose us? A:

    1. We have focused on the measurement of products for more than 10 years, with a professional R & D team and after-sales team.

    2. It is located in Dongguan City, a world-famous manufacturing city. 3: after-sales service for 12 months, simple problems within 48 hours to deal with timely.

    Q: What is your delivery time? What about the packing?

    A: Our delivery time is 15-20 working days after receiving the deposit,and 25-35 working days for customized machines. Our packaging is wrapped and fixed with professional machine packaging film inside, and wooden box packaging and screw fixing are used on the outside. Ensure that the product arrives safely without damage.

    Q: Is on-site training available?

    Can, the need for on-site training needs to confirm the specific time with the relevant salesman in advance.
