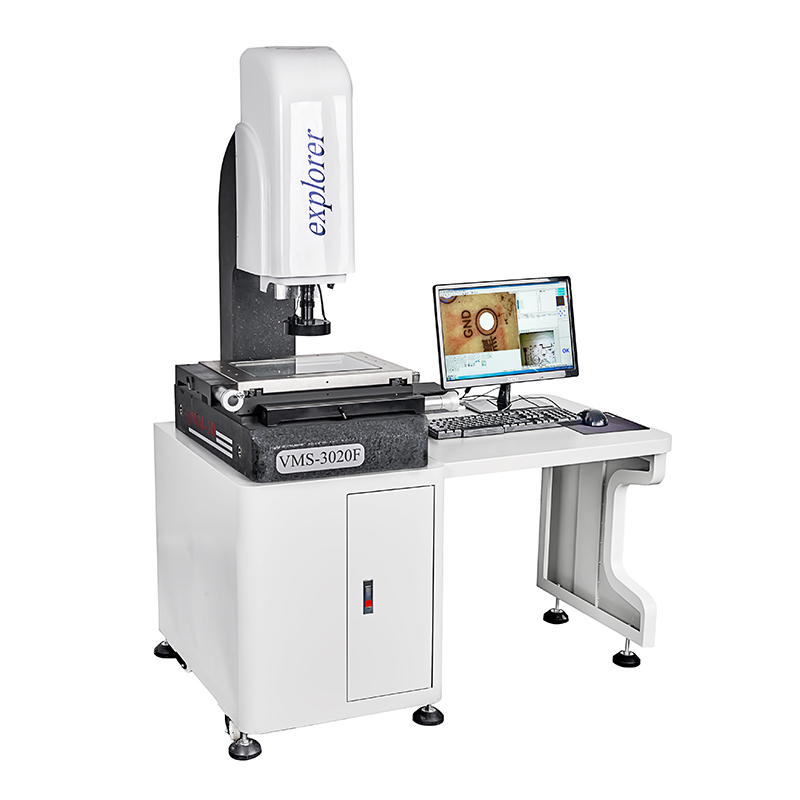

    High Precision 2D Coordinate Measuring Machine Semi Automatic For Electrics Plastics

    Ask Lasest Price
    Brand Name : WM-3D
    Model Number : VMS-3020F
    Certification : ISO9001
    Price : $4,000.00/sets
    • Product Details
    • Company Profile

    High Precision 2D Coordinate Measuring Machine Semi Automatic For Electrics Plastics

    2d Semi-automatic high precision optical measuring machine visual measuring machine

    Product Description

    High Precision 2D Coordinate Measuring Machine Semi Automatic For Electrics Plastics

    .

    Items

    VMS-2010F

    VMS-3020-F

    VMS-4030F

    VMS-5040F

    Dimension(mm)(L×W×H)

    500*700*1100

    600*750*1100

    700*900*1150

    850*1050*1200

    Measuring range(mm)(X×Y×Z)

    200*100*200

    300*200*200

    400*300*200

    500*400*200

    Measuring Accuracy(μm

    3+L/200

    3+L/200

    3+L/200

    3+L/200

    Repeatability (μm)

    3

    3

    3

    3

    Weight(kg)

    150

    180

    200

    240

    Image and Measuring

    CCD

    Japanese SOnYCcD

    Len

    WM HD zoom lens / continuous magnification 0.7-4,5x

    Magnification

    30-210X

    ptical scale resolution

    X/Y/zaxis 0.0005mm ( 0.5um

    Measuring range

    9.omm-1.35mm

    measuring system

    Auxiliary focusing measurement, optical measuring altitude and flatness, and can be equipped with the British RENISHAW contact probe,

    Driving system

    versatile data processor can measures points, lines, loops, circles, angles, etc.

    Illumination

    Surface light and projection light , cold light, long life, brightness adjustable

    High Precision 2D Coordinate Measuring Machine Semi Automatic For Electrics Plastics

    Function Description:


    Element measurement: Measuring points, lines, circles, arcs, angles, oval, rectangle measuring a

    predetermined number of points, automatic identification points, lines, circles, arcs.


    Element structure: Center construction, the intersection of structure, the midpoint structure, line structure,

    round structure, angle configuration.


    Preset elements: points, lines, circles, arcs. Coordinate translation, straighten the workpiece. Straighten any

    axis coordinate system reset.


    Graphics: Graphics zoom, graphics narrowing, graphics pan, graphics selected, select the circle, delete the

    graphic, graphic print. Zoom settings, set the image gray, saturation, contrast, save, images in BMP format.


    A variety of edge finder mode, the computer automatically take points, automatic identification round, arc greatly

    improve mining point speed.


    Image support S-Video, AV terminal, USB terminal input; image size of 640 * 480mm. Measurement data directly

    into AutoCAD for statistical analysis, can draw simple Xbar-s control chart obtained various parameters Ca.

    Multilingual interface switching.

    High Precision 2D Coordinate Measuring Machine Semi Automatic For Electrics Plastics

    Our Services

    High Precision 2D Coordinate Measuring Machine Semi Automatic For Electrics Plastics

    12 months warranty. Buy with confidence!

    1. Within 12 months from the date of assemble and acceptance, but not exceeding 15 months from the date if shipment.

    2. During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service.

    3. We provide life warranty services of machine for users with cost.

    01. If machine failure caused by our side, you can send back the spare parts to us and the cost by our side.

    02. But if needs our technician come to customer side for training, technical service is free,

    except ticket and accommodation.

    4. Extra warranty period: We will provide to user after-sale long-life advisory service.

    5. Our company has spare parts which can be provided for the users with cost.


    6. We provided users with after-sales value added technical service by preferential price for life,


    Company Information

    High Precision 2D Coordinate Measuring Machine Semi Automatic For Electrics Plastics

    High Precision 2D Coordinate Measuring Machine Semi Automatic For Electrics Plastics

    Certifications

    High Precision 2D Coordinate Measuring Machine Semi Automatic For Electrics Plastics

    1.our software through the national professional organization of standard measurement certification.

    2.our machines can give HSR agency of standard measurement certification.
    Packaging & Shipping

    High Precision 2D Coordinate Measuring Machine Semi Automatic For Electrics Plastics

    High Precision 2D Coordinate Measuring Machine Semi Automatic For Electrics Plastics

    FAQ

    High Precision 2D Coordinate Measuring Machine Semi Automatic For Electrics Plastics


    Q:why do you choose us?

    A:1.We have focused on the measurement of products for more than 10 years,with a professional R&D team and after-sales team.

    A2.It is located in Dongguan City, a world-famous manufacturing city.

    A3:after-sales service for 12 months,simple problems within 48 hours todeal with timely.


    Q:what is your delivery time? What about the packing?

    A:Our delivery time is 5 working days after receiving the deposit or order confirmation, and 10-20 working days for customized machines. Our packaging is wrappedand fixed with professional machine packaging film inside, and woodenbox packaging and screw fixing are used on the outside.Ensure that theproduct arrives safely without damage.


    Q:Is on-site training available?

    A:can,the need for on-site training needs to confirm the specific time with Q5:What are the payment terms?

    A:T/T,L/C,Western Union,etc
