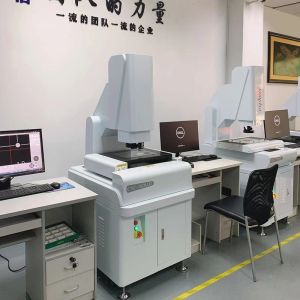

Digital Flatness Measuring Machine , Automatic OMM Optical Measurement Machine

Ask Lasest Price
Brand Name :	WM-3D
Model Number :	CNC-5040J
Certification :	ISO9001
Price :	$30,000.00/sets
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :	2days

Add to Cart

Product Details
Company Profile

Digital Flatness Measuring Machine , Automatic OMM Optical Measurement Machine

Series Automatic Optical Image Measuring Test Equipment Tester Instrument

Products Description

Digital Flatness Measuring Machine , Automatic OMM Optical Measurement Machine

Items	CNC-3020J	CNC-4030J	CNC-5040J
Dimension(mm)(L×W×H)	7008501650	8009001650	90010501650
Measuring range(mm)(X×Y×Z)	300200200	400300200	500400200
Measuring Accuracy(μm	3+L/200	3+L/200	3+L/200
Repeatability (μm)	3	3	3
Weight(kg)	300	380	450

Image and Measuring	CCD	Japanese SOnYCcD
		Len	High definition zoomlens/Continuous magnification 0.7-5.0x
		Magnification	40-230X( For reference only. With different camera and lens the magnification will be different. )
		ptical scale resolution	x/Y/z axis o.0002mm ( 0.2um )
		Working distance	108mm

Measurement software	Combine the 3D measurement software developed by the imported software function to improve the boundary resolution.
Driving system	X/Y/Z three-axis high performance Taiwan servo motor, double closed loop control system
Illumination	Program-controlled five-ring eight-zone surface light source,LED contour light source, coaxial light source.Different colors are added to different products.

♥High precision and high strength machine:00 marble base / upright cloumn / worktable, high precision and good stability.

♥XYZ three axis imported precision v type guide rail / imported optic axis drive system, long service life, good stability.

♥wMContinuous zoom optical lens,d ifferent frames, different magnification, without zoom correction.

♥HD Japanese SoNY ccD camera, high quality measuring screen.

♥Auxiliary focusing measurement, optical measuring altitude and flatness, and can be equipped with the British RENISHAW contact probe.

♥Surface light , LED profile light , coaxial light . choose match programmable three ring eight area light.

♥The laser pointer indicates the position of measuring,rapid positioning and convenient measurement.

♥Can match foot switch, easy to operate at any place.

Characteristics:

1.Graph function key, graph constructive functional key and visual tool functional key is separated by color and grouped tactically, it makes the communication between operator and instrument quickly and friendly, and it improves the speed of human measurement obviously.

2.Graph function key is black.

3.Graph constructive key is red.

4.Visual tool function key is black and green.

Our Services

1.Warranty within 12 months from the time of receipt 2.During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service. 3.We provide life warranty services of machine for users with cost. 01.If machine failure caused by our side, you can send back the spare parts to us and the cost by our side. 02.But if needs our technician come to customer side for training, technical service is free, except ticket and accommodation. 4.Extra warranty period: We will provide to user after-sale long-life advisory service. 5.Our company has spare parts which can be provided for the users with cost. 6.We provided users with after-sales value added technical service by preferential price for life,
