    Semi Automatic Optical Measuring Instruments 2D 2.5D 3D 200mm/S

    Ask Lasest Price
    Brand Name : WM-3D
    Model Number : CNC-3020
    Certification : Iso9001
    Price : $18,000.00/sets 1-4 sets
    • Product Details
    • Company Profile

    Semi Automatic Optical Measuring Instruments 2D 2.5D 3D 200mm/S

    2D 2.5D 3D Manual semi-automatic Quadratic elements Optical Measuring Instrument Video Measuring Machine

    Product Description

    Semi Automatic Optical Measuring Instruments 2D 2.5D 3D 200mm/S


    1. Double closed-loop motion control, motor in high-speed movement with precise positioning performance.
    2. Using the embedded modules developed to control motor, increasing motor speed accordingly, but also to simplify the instrument and the PC-interface, PC machines and instruments through the USB line and S-Video cable.
    3. It is coupled with the company's self-developed CNC measurement software to achieve rapid detection of large quantities of work pieces at the same time with SPC data analysis capabilities in order to achieve a one-time complete the whole measurement.
    4. Surface light source formed by an independent group of 24, each group are constant current source driver and 200-step continuous variable.
    5. With marble platform, high stability.

    Model

    CNC-3020

    Glass table Size

    330*230

    Metal table Size

    350*250

    Working travel X.Y

    300*200

    Z-axis travel lift(mm)

    200 focus

    X.Y.Z-axis digital display resolution

    0.5um

    X.Y axis value error

    ≤(3+L/200)L is the measured length,unit mm)

    Weight(kg)

    720

    Dimession

    700*900*1650

    Motor

    Three axis velocity

    100mm/s

    Three axis positioning accuracy

    0.001mm

    Image system

    Camare

    Sony color 1/3″CCD camera

    Zoom

    coaxial optical zoom lens with a zoom lens (2 select one)

    Zoom magnification

    0.7-4.5X

    Video total magnification

    30-230X

    Objector field

    11.1-1.7mm

    Power

    AC220V/AC110V

    Power consumption

    100W

    Insreument accessories

    1Xtube(option)

    0.5Xtube(option)

    Working distance

    Zoom lens

    0.7-4.5X

    0.7-4.5X

    Add lens

    Video magnification

    Material side field(mm)

    Video magnification

    Material side field(mm)

    0.5X option

    11.8X-74X

    22-3.4

    5.9X-37X

    44-6.8

    175

    Standard

    23.5X-148X

    11.1-1.7X

    11.8X-74X

    22-3.4

    92

    2Xoption

    47X-296X

    5.5-0.9

    23.5X-148X

    11.1-1.7

    36

    Semi Automatic Optical Measuring Instruments 2D 2.5D 3D 200mm/S
    Semi Automatic Optical Measuring Instruments 2D 2.5D 3D 200mm/S
    Semi Automatic Optical Measuring Instruments 2D 2.5D 3D 200mm/S
    Semi Automatic Optical Measuring Instruments 2D 2.5D 3D 200mm/S
    Functions

    Semi Automatic Optical Measuring Instruments 2D 2.5D 3D 200mm/SMainly for metallograhpic measurement & analysis!These "Universal" models combine a measuring stand with the best of metallurgical microscope components for high resolution imaging and critical measurements. Featuring the full range of advanced infinity objectives and microscopy techniques including: brightfield,darkfield, DIC contrast, polarizing and epifluorescence.Up to five objectives may bemounted on the nosepiece.With more usages if upgraded.
    Specifications

    1. It can measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function.

    2. It has many features, such as combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view.

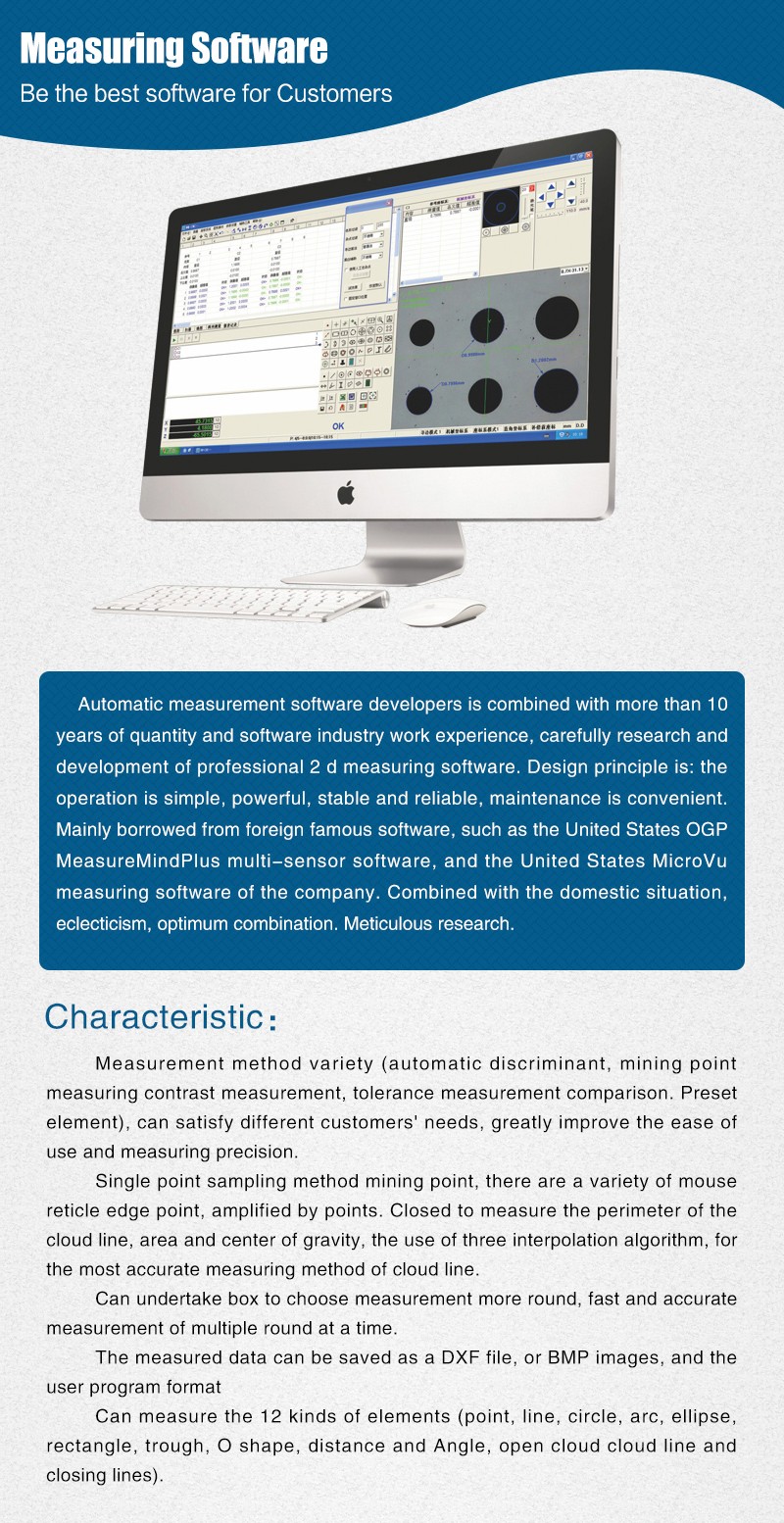

    3. It is coupled with the company's self-developed CNC measurement software to achieve rapid detection of large quantities of work pieces at the same time with SPC data analysis capabilities in order to achieve a one-time complete the whole measurement.

    4. Coordinate translation and coordinates straighten out is to make measurement more convenient and efficient and improve measurement efficiency.

    5. Macros can measure the same parts faster and more convenient volume and improve the measurement efficiency.
    6. Measurement data directly input into AutoCAD and become a full work circle; the data also can be entered in Excel and Word to conduct statistical analysis.
    7. Record user program, editing and execute command.
    Our Services

    Semi Automatic Optical Measuring Instruments 2D 2.5D 3D 200mm/S

    12 months warranty. Buy with confidence!

    1. Within 12 months from the date of assemble and acceptance, but not exceeding 15 months from the date if shipment.

    2. During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service.

    3. We provide life warranty services of machine for users with cost.
    01. If machine failure caused by our side, you can send back the spare parts to us and the cost by our side.
    02. But if needs our technician come to customer side for training, technical service is free,except ticket and accommodation.

    4. Extra warranty period: We will provide to user after-sale long-life advisory service.

    5. Our company has spare parts which can be provided for the users with cost.
    6. We provided users with after-sale value added technical service by preferential price for life.
    Company Information

    Semi Automatic Optical Measuring Instruments 2D 2.5D 3D 200mm/S

    Semi Automatic Optical Measuring Instruments 2D 2.5D 3D 200mm/S

    Certifications

    Semi Automatic Optical Measuring Instruments 2D 2.5D 3D 200mm/S

    1.our software through the national professional organization of standard measurement certification.

    2.our machines can give HSR agency of standard measurement certification.
    Packaging & Shipping

    Semi Automatic Optical Measuring Instruments 2D 2.5D 3D 200mm/S
